Automatic Minced Meat Processing Line with Cutter Washing&Grinder

    oops...!

    no product data.

    Go to homepage
    Model
    KT-D10
    Machine size (L*W*H)
    700*900*1070mm
    Machine weight
    200kg
    Power Supply
    380V
    Power Input
    1.5kw
    Capacity
    300kg/h (10-12kg/batch)

    products Specifications

    We have been exporting lots of fruit vegetable washer machines overseas, no any clients make any complaints about our packages. If you have any questions about fruit vegetable washer machines or other food processing machines, please do not hesitate to contact us.

    SPECIFICATIONS FOR KT-WB100U Commercial Best Multifunctional Fruit and Vegetable Washer Machine

    Material

    Stainless Steel

    Power Input

    220V / 380V, 60hz

    Washing Tank Size

    950*700mm

    Washing Tank Depth

    650mm

    Capacity

    20~40kg/batch, 3~5min/batch, 800kg/h

    Machine Dimension(L*W*H)

    1850*1050*1300mm

    Net Weight

    316KG

    MOQ

    1 Unit

    Lead Time

    7~20 working days

    Warranty

    1 Year

    product video

    products display

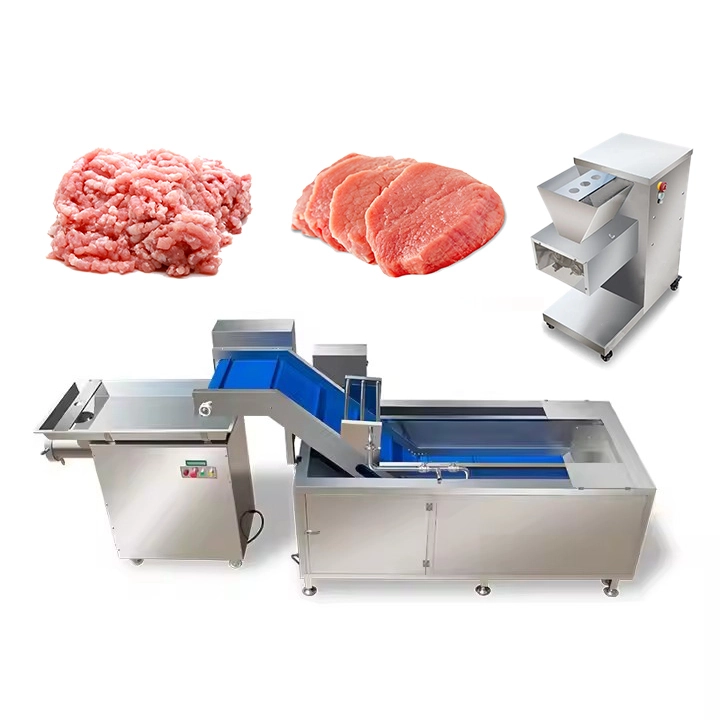

    The automatic minced meat processing line is specially designed to handle raw meat in preparation for further processing such as meatballs, dumplings, sausages, or meat sauces. The line includes:

    Meat Cutter: Efficiently slices frozen or fresh meat blocks into smaller strips or slices for easy handling.

    Meat Slice Washing Machine: Uses bubble and spray cleaning to remove residual blood, impurities, or bone fragments, ensuring hygiene before grinding.

    Meat Grinder: Produces uniform minced meat with customizable plate sizes depending on final product requirements.

    Made of high-quality 304 stainless steel, the entire line is easy to clean, resistant to corrosion, and supports continuous operation. This system is ideal for small to medium-sized meat processors, frozen food manufacturers, and prepared food factories.

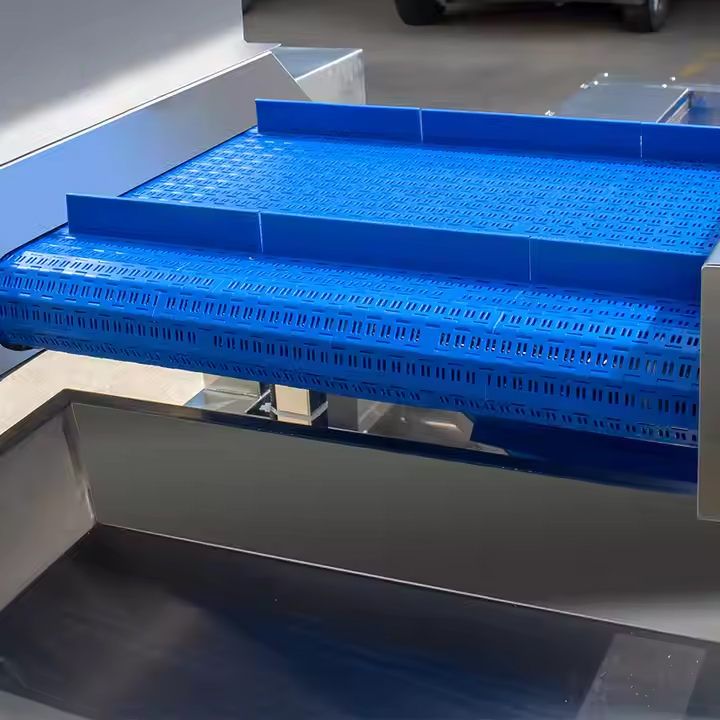

    Feeding Inlet  (3)
    Feeding Inlet

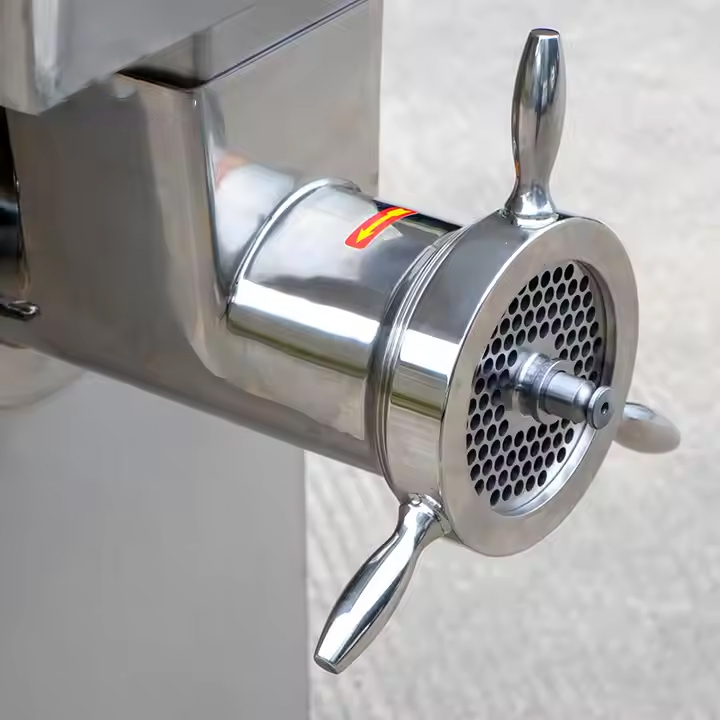

    Meat Grinder Outlet (2)
    Meat Grinder Outlet
    Meat Cutter Blades
    Meat Cutter Blades

    Product features

    Automatic Minced Meat Processing Line with Cutter Washing&Grinder 7
    High-Efficiency Cleaning
    The circulating water flow system generates high-speed rotation to effectively remove dirt, mud, and impurities from vegetables, fruits, and seafood without causing damage. The water flow strength and cleaning time are fully adjustable, ensuring optimal performance for various food washing needs.
    Automatic Minced Meat Processing Line with Cutter Washing&Grinder 8
    Hydraulic Unloading System
    Equipped with an automatic hydraulic system, the KT-WB100U lifts, drains, and unloads cleaned materials into the next processing stage. It also allows for secondary cleaning by transferring materials between washers, making it perfect for commercial food processing operations that require multiple cleaning stages.
    Automatic Minced Meat Processing Line with Cutter Washing&Grinder 9
    Durable Construction
    Built with food-grade 304 stainless steel, the KT-WB100U is designed for durability and easy maintenance. It is resistant to wear and corrosion, even in demanding commercial food production environments.
    Automatic Minced Meat Processing Line with Cutter Washing&Grinder 10
    Batch Processing for High Output
    The KT-WB100U is designed for batch washing, with a capacity of 20-40kg per batch and a cleaning cycle of just 3-5 minutes. With an hourly capacity ranging from 300-800kg per hour, it is ideal for large-scale, continuous production.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (4)
    Fully Automated Operation
    This automated washer machine includes features such as high-pressure rinsing, automatic flipping, and water-saving drainage. It is easy to operate and perfect for food processing plants requiring high-efficiency, low-maintenance washing solutions.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (3)
    Wide Applications
    Ideal for cleaning various products such as leafy vegetables, root vegetables, fruits, and seafood, the KT-WB100U is widely used in food processing factories, restaurants, hotels, canteens, and fruit processing businesses.

    This line integrates multiple processing stages into one smooth workflow, saving time and labor while maintaining hygiene and product consistency.


    ✔ Complete Processing Chain: From slicing to washing and grinding, all in one automated line

    Efficient Cleaning: Bubble and spray system ensures meat slices are clean and free from debris

    Flexible Grinding Output: Changeable grinding plates to suit different product needs (fine, medium, coarse)

    Hygienic Design: Food-grade 304 stainless steel structure, easy to clean and sanitize

    Labor Saving: Continuous processing reduces manual handling and improves efficiency

    application

    This processing line is ideal for meat and food processors that require high-quality minced meat for: Sausages, Dumpling filling, Meatballs, Meat patties, Canned meat, Meat sauces and Ready-to-cook or frozen foods.

    By automating the cutting, washing, and grinding process, this line improves product consistency, enhances hygiene, and reduces labor costs—making it perfect for meat processing plants, frozen food factories, and central kitchens.

    Grinding Result
    Grinding Result
    inced Meat Discharge
    inced Meat Discharge

    fAQ

    1
    What types of meat can this line process?
    It can process pork, beef, lamb, chicken, and other boneless meats.
    2
    Can I customize the grinding size?
    Yes, different grinder plates are available to produce fine, medium, or coarse mince.
    3
    Is the washing machine suitable for raw meat?
    Yes, it uses a bubble and spray cleaning system to clean raw meat slices before grinding.
    4
    What material is used for the machine?
    The full system is made from food-grade 304 stainless steel for durability and hygiene.
    5
    What capacity is available?
    We offer standard and customized capacities depending on your production scale.
    Do you have specific needs? Let us know.

    IKE offers customized food processing machines to match your needs. Tell us what you're looking for—we’ll help you find the right solution.
