One-stop food processing production line solution provider, providing professional equipment.

Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 1
Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 2
Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 3
Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 4
Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 1
Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 2
Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 3
Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 4

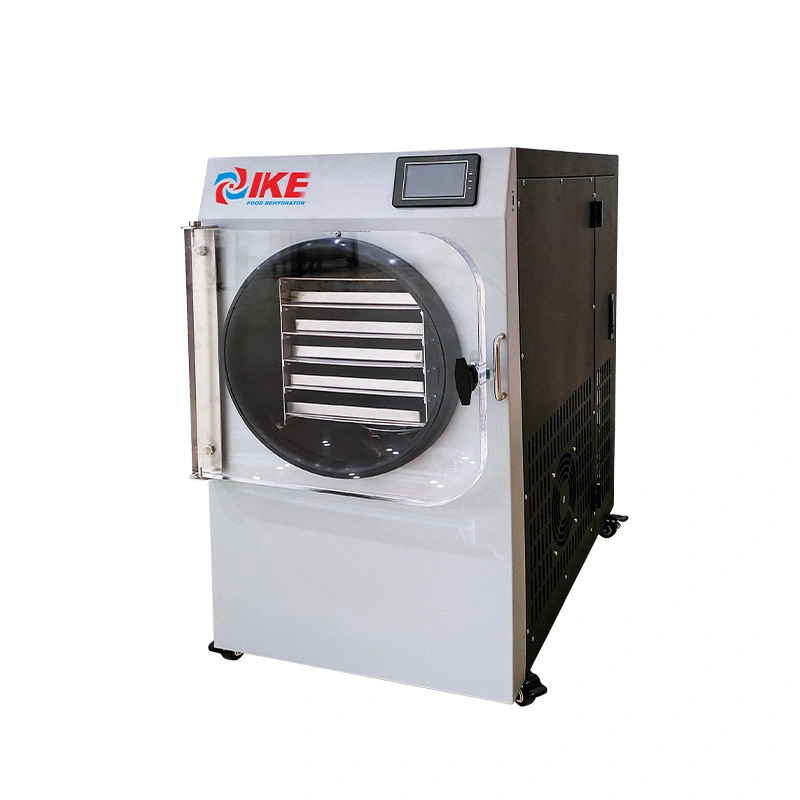

Compact Vacuum Freeze Dryer for Home Use Model FVD-H6

Capacity: 6-8kg/batch

Warranty period: 12 months

IKE also offers freeze dryers in various sizes and capacities to meet your need. Please do not hesitate to contact us.

    oops...!

    no product data.

    Go to homepage
    Model
    FVD-H6
    Drying Area
    0.6-0.8㎡
    Temperature of Cold Trap
    ≤-40℃
    Opeating Vacuum
    ≤200mTo (≈27Pa)
    Heating Heating
    -10~75℃
    Electric Heating
    780w
    Tray Number
    5 pcs
    Power Supply
    1ph 220V
    Power Input
    2.38kw
    Capacity
    6-8kgs

    products Specifications

    We have been exporting lots of fruit vegetable washer machines overseas, no any clients make any complaints about our packages. If you have any questions about fruit vegetable washer machines or other food processing machines, please do not hesitate to contact us.

    SPECIFICATIONS FOR KT-WB100U Commercial Best Multifunctional Fruit and Vegetable Washer Machine

    Material

    Stainless Steel

    Power Input

    220V / 380V, 60hz

    Washing Tank Size

    950*700mm

    Washing Tank Depth

    650mm

    Capacity

    20~40kg/batch, 3~5min/batch, 800kg/h

    Machine Dimension(L*W*H)

    1850*1050*1300mm

    Net Weight

    316KG

    MOQ

    1 Unit

    Lead Time

    7~20 working days

    Warranty

    1 Year

    product video

    products display

    The IKE FVD-H6 small freeze dryer offers a complete solution for home or small-scale food preservation. This unit integrates a powerful freeze-drying system with a built-in vacuum pump, making it easy to start drying without external equipment. With a capacity of 6–8 kg per batch and 5 stainless steel trays, the FVD-H6 is ideal for drying fruits, vegetables, meats, candies, and even herbs with high quality retention. Designed for simplicity, quiet operation, and energy efficiency, it is perfect for beginners and professionals alike.

    Discharge Conveyor
    Discharge Conveyor
    5-Layer Tray Rack
    5-Layer Tray Rack
    Built-in Vacuum Pump
    Built-in Vacuum Pump
    Door Handle (3)
    Door Handle (3)
    Drain Outlet (4)
    Drain Outlet (4)
    External USB Port
    External USB Port
    Power Inlet
    Power Inlet
    Pressure Relief Port
    Pressure Relief Port
    Stainless Steel Tray
    Stainless Steel Tray
    Swivel Caster Wheels
    Swivel Caster Wheels
    Touchscreen Controller
    Touchscreen Controller

    Product Advantages

    Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 16
    High-Efficiency Cleaning
    The circulating water flow system generates high-speed rotation to effectively remove dirt, mud, and impurities from vegetables, fruits, and seafood without causing damage. The water flow strength and cleaning time are fully adjustable, ensuring optimal performance for various food washing needs.
    Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 17
    Hydraulic Unloading System
    Equipped with an automatic hydraulic system, the KT-WB100U lifts, drains, and unloads cleaned materials into the next processing stage. It also allows for secondary cleaning by transferring materials between washers, making it perfect for commercial food processing operations that require multiple cleaning stages.
    Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 18
    Durable Construction
    Built with food-grade 304 stainless steel, the KT-WB100U is designed for durability and easy maintenance. It is resistant to wear and corrosion, even in demanding commercial food production environments.
    Compact Vacuum Freeze Dryer for Home Use  Model FVD-H6 19
    Batch Processing for High Output
    The KT-WB100U is designed for batch washing, with a capacity of 20-40kg per batch and a cleaning cycle of just 3-5 minutes. With an hourly capacity ranging from 300-800kg per hour, it is ideal for large-scale, continuous production.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (4)
    Fully Automated Operation
    This automated washer machine includes features such as high-pressure rinsing, automatic flipping, and water-saving drainage. It is easy to operate and perfect for food processing plants requiring high-efficiency, low-maintenance washing solutions.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (3)
    Wide Applications
    Ideal for cleaning various products such as leafy vegetables, root vegetables, fruits, and seafood, the KT-WB100U is widely used in food processing factories, restaurants, hotels, canteens, and fruit processing businesses.

    ✔ Built-in Vacuum Pump – No external installation needed, plug and play.

    6–8 kg Capacity – Perfect for family use and small-scale food preservation.

    User-Friendly Touchscreen – Intuitive interface for temperature and time control.

    Food-Grade Stainless Steel Trays – 5 trays provide ample drying space and easy cleaning.

    Quiet and Compact – Designed to fit in kitchens, home pantries, or workshops.

    Wide Food Compatibility – From fruits and vegetables to meat, seafood, candy, and pet snacks.

    application

    The FVD-H6 Small Home Freeze Dryer is suitable for a wide variety of foods, making it an ideal solution for home users, small businesses, or anyone looking to preserve food naturally. Common applications include:

    Fruits & Vegetables – Apples, bananas, berries, tomatoes, mushrooms, leafy greens

    Meats & Seafood – Chicken, beef, fish, shrimp, cooked meals

    Candy & Sweets – Gummy candy, marshmallows, yogurt drops

    Herbs & Flowers – Mint, rosemary, edible flowers

    Pet Treats – Freeze-dried dog and cat snacks

    Homemade Meals – Soups, stews, pasta dishes

    The FVD-H6 makes it easy to prepare lightweight, long-lasting, and nutritious food—perfect for everyday snacking, camping, emergency storage, or healthy lifestyle planning.

    Trimmed Onions
    Trimmed Onions

    fAQ

    1
    What is a built-in vacuum pump?
    Most freeze dryers on the market require an external vacuum pump, which can be bulky, unattractive, and inconvenient to install. The FVD-H6 features a patented built-in vacuum pump design, eliminating the need for separate installation. It arrives as a complete unit, offering a cleaner setup and easier transport.
    2
    Is the built-in vacuum pump difficult to maintain?
    Not at all. The vacuum pump is housed inside the unit but remains easily accessible. Simply open the side panel to inspect, remove, or maintain the pump—no special tools or complex disassembly required.
    3
    What type of vacuum pump does the FVD-H6 use?
    The standard FVD-H6 comes with a conventional built-in rotary vane vacuum pump. An oil-free pump is also available upon request; however, it is more costly and typically not necessary for regular food freeze-drying applications.
    4
    How do I set and monitor the drying cycle?
    The FVD-H6 is equipped with an intuitive touchscreen interface. Users can monitor key parameters such as temperature, pressure, and time, and either choose from automatic programs or create custom settings tailored to specific materials.
    5
    What is the typical drying time per batch?
    Drying time ranges from 24 to 36 hours depending on the moisture content, product type, and load volume. Thinly sliced materials dry faster than whole or thick items.
    Do you have specific needs? Let us know.

    IKE offers customized food processing machines to match your needs. Tell us what you're looking for—we’ll help you find the right solution.
