    products Specifications

    We have been exporting lots of fruit vegetable washer machines overseas, no any clients make any complaints about our packages. If you have any questions about fruit vegetable washer machines or other food processing machines, please do not hesitate to contact us.

    SPECIFICATIONS FOR KT-WB100U Commercial Best Multifunctional Fruit and Vegetable Washer Machine

    Material

    Stainless Steel

    Power Input

    220V / 380V, 60hz

    Washing Tank Size

    950*700mm

    Washing Tank Depth

    650mm

    Capacity

    20~40kg/batch, 3~5min/batch, 800kg/h

    Machine Dimension(L*W*H)

    1850*1050*1300mm

    Net Weight

    316KG

    MOQ

    1 Unit

    Lead Time

    7~20 working days

    Warranty

    1 Year

    product video

    products display

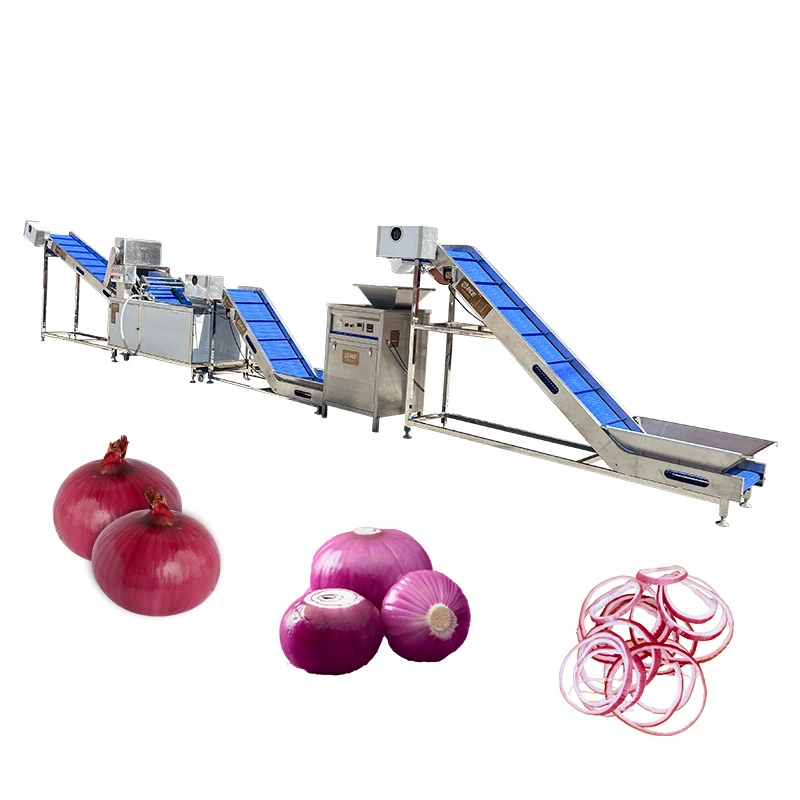

    This industrial onion processing line is designed for food manufacturers seeking a reliable, hygienic, and automated method to handle large quantities of onions. The standard line includes:

    1. Onion Top and Tail Cutting Machine

    This semi-automatic machine trims both ends of onions before peeling, helping to ensure more effective peeling and reduce waste. Operators manually feed onions into the inlet, while the machine cuts with precision. Waste skins are discharged through a separate outlet.

    2. Automatic Onion Peeling Machine

    Utilizing compressed air, this machine efficiently removes onion skins without blades, avoiding damage to the edible layer. It handles various onion sizes automatically and is ideal for high-output commercial applications.

    3. Bubble Washing Machine

    After peeling, onions enter a bubble-type washing tank where high-pressure air and water gently remove surface residues. This ensures a cleaner product while protecting the onion's integrity. The machine is equipped with easy-drain systems and stainless steel mesh platforms.

    4. Lifting Conveyor

    This stainless-steel conveyor transports washed onions smoothly to the slicer. It helps minimize manual handling, ensures steady feeding, and improves overall line efficiency.

    5. Onion Slicing Machine

    The slicing machine cuts onions into uniform slices, with adjustable thickness to suit different product requirements. Built for high-speed slicing with minimal waste, it is suitable for dehydration, freezing, or pre-packaged applications.

    6. Optional Drying & Packaging Machines

    For customers processing dehydrated onion slices or pre-cut onions for retail, we offer optional equipment including low-temperature onion dryers and pillow-type or vertical packaging machines. These additions help form a full onion processing solution.


    All machines in the line are constructed from food-grade SUS304 stainless steel for easy cleaning, corrosion resistance, and compliance with food safety regulations.

    Customized Potato Washing and Cutting Line
    Customized Potato Washing and Cutting Line
    Onion lifted to peeling machine inlet
    Onion lifted to peeling machine inlet
    Onion slicing process
    Onion slicing process
    Onion washer with residue separator
    Onion washer with residue separator
    Onion washing
    Onion washing
    Peeled onions
    Peeled onions
    Sliced onions
    Sliced onions
    Washing machine controller (2)
    Washing machine controller
    Washing onion rings
    Washing onion rings

    Product Advantages

    Custom Industrial Onion Processing Line for Commercial Use 13
    High-Efficiency Cleaning
    The circulating water flow system generates high-speed rotation to effectively remove dirt, mud, and impurities from vegetables, fruits, and seafood without causing damage. The water flow strength and cleaning time are fully adjustable, ensuring optimal performance for various food washing needs.
    Custom Industrial Onion Processing Line for Commercial Use 14
    Hydraulic Unloading System
    Equipped with an automatic hydraulic system, the KT-WB100U lifts, drains, and unloads cleaned materials into the next processing stage. It also allows for secondary cleaning by transferring materials between washers, making it perfect for commercial food processing operations that require multiple cleaning stages.
    Custom Industrial Onion Processing Line for Commercial Use 15
    Durable Construction
    Built with food-grade 304 stainless steel, the KT-WB100U is designed for durability and easy maintenance. It is resistant to wear and corrosion, even in demanding commercial food production environments.
    Custom Industrial Onion Processing Line for Commercial Use 16
    Batch Processing for High Output
    The KT-WB100U is designed for batch washing, with a capacity of 20-40kg per batch and a cleaning cycle of just 3-5 minutes. With an hourly capacity ranging from 300-800kg per hour, it is ideal for large-scale, continuous production.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (4)
    Fully Automated Operation
    This automated washer machine includes features such as high-pressure rinsing, automatic flipping, and water-saving drainage. It is easy to operate and perfect for food processing plants requiring high-efficiency, low-maintenance washing solutions.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (3)
    Wide Applications
    Ideal for cleaning various products such as leafy vegetables, root vegetables, fruits, and seafood, the KT-WB100U is widely used in food processing factories, restaurants, hotels, canteens, and fruit processing businesses.

    ✔ Turnkey Onion Processing: From peeling to slicing, with optional expansion for trimming, drying, and packaging.

    Blade-Free Peeling: Uses compressed air to remove skins gently and cleanly.

    Hygienic Construction: All machines made from SUS304 stainless steel for long service life and sanitation.

    Modular Design: Flexible layout and easy integration based on your factory space and process flow.

    Adjustable Output: Processing capacity can be customized from 500 kg/h to over 2,000 kg/h.

    Efficient Labor Saving: Greatly reduces manual operation while improving consistency and output speed.

    application

    This onion processing line is specially designed for medium to large-scale commercial use, and is suitable for a wide range of industrial applications including:

    ✔ Processing onions for dehydration (dried onion flakes or powder)

    ✔ Pre-processing onions for frozen food manufacturing

    ✔ Slicing onions for packaged convenience foods or bulk food service

    Use in central kitchens, food factories, and vegetable processing plants

    Note: This line is specifically designed for onions. It is not intended for processing other vegetables.

    Dried onion rings (2)
    Dried onion rings

    fAQ

    1
    What equipment is included in the standard onion processing line?
    The standard configuration includes one automatic onion peeling machine, one bubble washing machine, one lifting conveyor, and one onion slicing machine.
    2
    Can the line include onion trimming, drying, or packaging equipment?
    Yes. We offer optional onion top and tail cutting machines, low-temperature dryers, and packaging machines to create a complete processing solution.
    3
    Can the slicing thickness be adjusted?
    Yes, the onion slicer allows you to customize the thickness of each slice to match your product specifications.
    4
    What is the processing capacity of the line?
    Capacity is customizable, ranging from 500 kg/h up to over 2,000 kg/h based on your production requirements.
    5
    Is the line suitable for different sizes of onions?
    Yes. The equipment is designed to handle a range of onion sizes without requiring frequent adjustments.
    Do you have specific needs? Let us know.

    IKE offers customized food processing machines to match your needs. Tell us what you're looking for—we’ll help you find the right solution.
