    products Specifications

    We have been exporting lots of fruit vegetable washer machines overseas, no any clients make any complaints about our packages. If you have any questions about fruit vegetable washer machines or other food processing machines, please do not hesitate to contact us.

    SPECIFICATIONS FOR KT-WB100U Commercial Best Multifunctional Fruit and Vegetable Washer Machine

    Material

    Stainless Steel

    Power Input

    220V / 380V, 60hz

    Washing Tank Size

    950*700mm

    Washing Tank Depth

    650mm

    Capacity

    20~40kg/batch, 3~5min/batch, 800kg/h

    Machine Dimension(L*W*H)

    1850*1050*1300mm

    Net Weight

    316KG

    MOQ

    1 Unit

    Lead Time

    7~20 working days

    Warranty

    1 Year

    product video

    products display

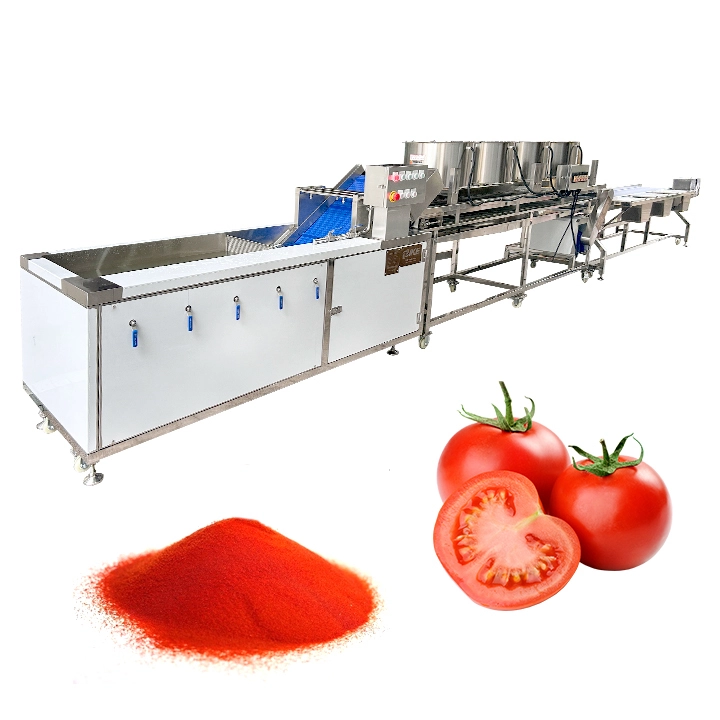

    This fully integrated tomato processing line from IKE includes five essential machines:



    1. Tomato Washing Machine

    • Uses high-pressure bubble cleaning combined with spray washing to remove dirt, pesticide residues, and surface impurities.
    • Made of SUS304 stainless steel with a recycling water system for eco-friendly operation.



    2. Tomato Slicing Machine

    • Accurately slices tomatoes into uniform thickness, adjustable from 2 mm to 10 mm.
    • Equipped with high-speed, corrosion-resistant blades and a conveyor feeding system.



    3. Tomato Drying Machine

    • IKE heat pump dryer or hot air drying room available depending on capacity needs.
    • Features smart temperature control (50–80°C), ensuring uniform drying and color retention.
    • Tray and belt-type dryers are available.



    4. Metal Detector

    • Ensures product safety by detecting and removing any potential metal contaminants before grinding.
    • Complies with international food safety standards.



    5. Tomato Powder Grinding Machine

    • Converts dried tomato slices into fine powder with consistent particle size.
    • Adjustable mesh size for various end-use applications like soup bases, sauces, or seasonings.
    Feeding Inlet  (3)
    Feeding Inlet
    Vibrating Separator (for Material Loosening)
    Vibrating Separator (for Material Loosening)
    Tomato Washing and Air Drying Line
    Tomato Washing and Air Drying Line
    Tomato Slicing
    Tomato Slicing
    Tomato Powder Grinding Machine
    Tomato Powder Grinding Machine
    tomato drying machine
    tomato drying machine
    Tomato Air Drying
    Tomato Air Drying
    Metal Detector
    Metal Detector
    Manual Tomato Sorting
    Manual Tomato Sorting

    Product features

    Automatic Tomato Processing Line for Washing Metal Detection ect 13
    High-Efficiency Cleaning
    The circulating water flow system generates high-speed rotation to effectively remove dirt, mud, and impurities from vegetables, fruits, and seafood without causing damage. The water flow strength and cleaning time are fully adjustable, ensuring optimal performance for various food washing needs.
    Automatic Tomato Processing Line for Washing Metal Detection ect 14
    Hydraulic Unloading System
    Equipped with an automatic hydraulic system, the KT-WB100U lifts, drains, and unloads cleaned materials into the next processing stage. It also allows for secondary cleaning by transferring materials between washers, making it perfect for commercial food processing operations that require multiple cleaning stages.
    Automatic Tomato Processing Line for Washing Metal Detection ect 15
    Durable Construction
    Built with food-grade 304 stainless steel, the KT-WB100U is designed for durability and easy maintenance. It is resistant to wear and corrosion, even in demanding commercial food production environments.
    Automatic Tomato Processing Line for Washing Metal Detection ect 16
    Batch Processing for High Output
    The KT-WB100U is designed for batch washing, with a capacity of 20-40kg per batch and a cleaning cycle of just 3-5 minutes. With an hourly capacity ranging from 300-800kg per hour, it is ideal for large-scale, continuous production.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (4)
    Fully Automated Operation
    This automated washer machine includes features such as high-pressure rinsing, automatic flipping, and water-saving drainage. It is easy to operate and perfect for food processing plants requiring high-efficiency, low-maintenance washing solutions.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (3)
    Wide Applications
    Ideal for cleaning various products such as leafy vegetables, root vegetables, fruits, and seafood, the KT-WB100U is widely used in food processing factories, restaurants, hotels, canteens, and fruit processing businesses.

    ✔ All-in-one system: From raw tomatoes to powder, fully integrated process

    Energy-saving drying: IKE dryers reduce operating costs with high efficiency

    Food-grade materials: Full SUS304 stainless steel for hygienic processing

    Customizable layout: Machines can be added, removed, or rearranged per workflow needs

    Compact design: Suitable for both small- and large-scale tomato processing projects

    application

    The IKE tomato processing line is a versatile solution for food producers aiming to expand their tomato-based product portfolio. From dried snacks to industrial powders, this system delivers high yield and consistent quality.

    It is ideal for processing:

    • Dried tomato slices – for snacks, instant noodles, or tea blends
    • Tomato powder – used in sauces, condiments, soups, or flavoring
    • Seasoning bases – blended with herbs for tomato-flavored spice mixes
    • Dehydrated tomato ingredients – for instant foods or meal kits

    Common users include:

    • Food ingredient manufacturers
    • Agricultural cooperatives
    • Tomato product exporters
    • OEM/ODM tomato powder brands

    With IKE's reliable technology and customizable solutions, tomato processing becomes efficient, scalable, and food-safe.

    Tomato Washing
    Tomato Washing
    Tomato Powder
    Tomato Powder
    Dried Tomato Slices
    Dried Tomato Slices

    fAQ

    1
    What is the drying time for tomato slices?
    Typically 6–8 hours at 50–60°C, depending on slice thickness and moisture content.
    2
    Can the machine process cherry tomatoes or grape tomatoes?
    Yes, the system can be adjusted to handle smaller tomato varieties with different slicing and feeding modules.
    3
    Can this processing line be customized to my factory layout?
    Absolutely. We can customize the line by increasing, reducing, or rearranging machines according to your space and process flow.
    4
    Do you offer international installation and training support?
    Yes, we provide comprehensive technical support, including remote or on-site installation, setup, and staff training.
