One-stop food processing production line solution provider, providing professional equipment.

Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 1
Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 2
Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 3
Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 1
Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 2
Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 3

Automatic Passion Fruit Washing, Air Drying and Grading Processing Line

    oops...!

    no product data.

    Go to homepage

    products Specifications

    We have been exporting lots of fruit vegetable washer machines overseas, no any clients make any complaints about our packages. If you have any questions about fruit vegetable washer machines or other food processing machines, please do not hesitate to contact us.

    SPECIFICATIONS FOR KT-WB100U Commercial Best Multifunctional Fruit and Vegetable Washer Machine

    Material

    Stainless Steel

    Power Input

    220V / 380V, 60hz

    Washing Tank Size

    950*700mm

    Washing Tank Depth

    650mm

    Capacity

    20~40kg/batch, 3~5min/batch, 800kg/h

    Machine Dimension(L*W*H)

    1850*1050*1300mm

    Net Weight

    316KG

    MOQ

    1 Unit

    Lead Time

    7~20 working days

    Warranty

    1 Year

    product video

    products display

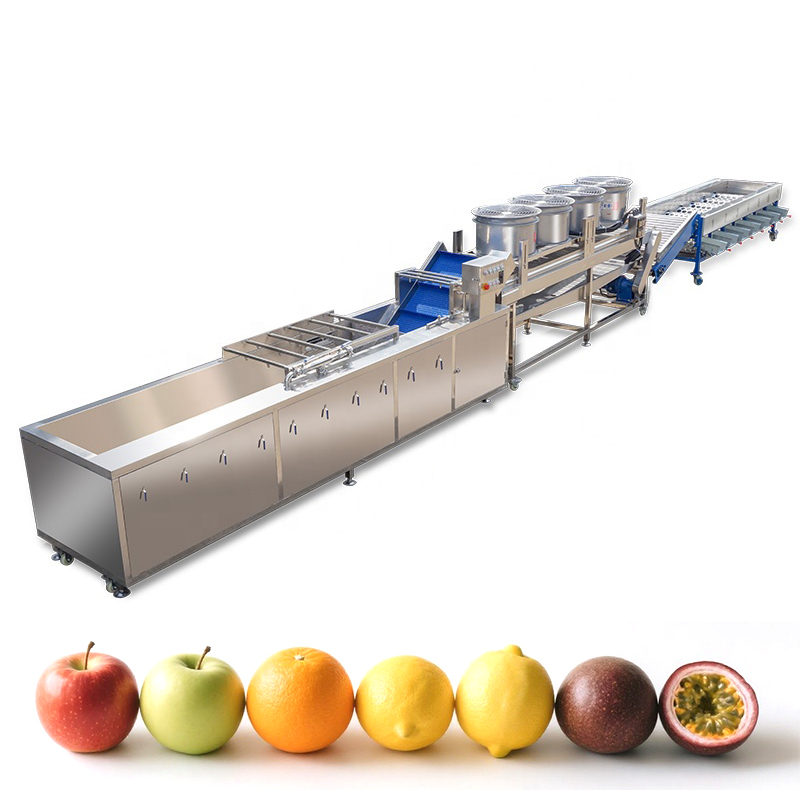

    The passion fruit processing line is a fully automated system designed for washing, air drying, and grading round-shaped fruits. Ideal for passion fruit and similar produce, the line ensures efficient surface cleaning, fast water removal, and accurate classification by size.


    The system consists of three main sections:

    Ozone Bubble Washing Machine: Uses high-pressure bubbles and ozone sterilization to remove dirt and residues from the fruit surface. An optional ultrasonic module enhances cleaning performance for delicate produce.

    Parallel Air Drying Machine: Features evenly distributed airflow that gently dries fruits without damage, preparing them for grading or packaging.

    Drum-Type or Roller-Type Grading Machine: Automatically classifies fruits by diameter, sorting them into predefined size categories with high precision.

    Built entirely from 304 food-grade stainless steel, this production line supports continuous work, improves operational efficiency, and reduces manual handling costs.

    IMG_1769
    IMG_1769

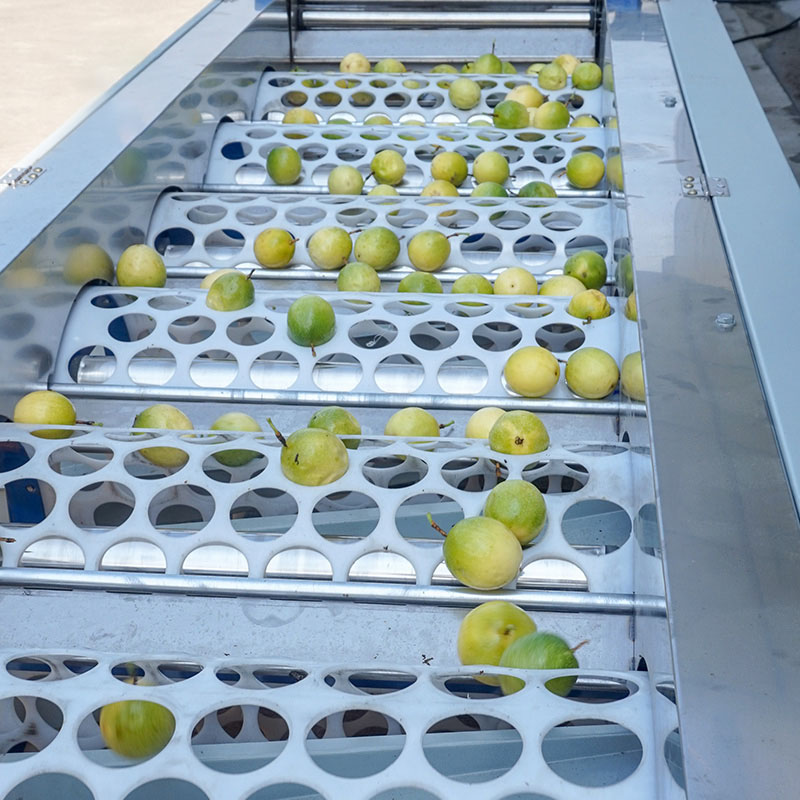

    Grading Holes
    Grading Holes

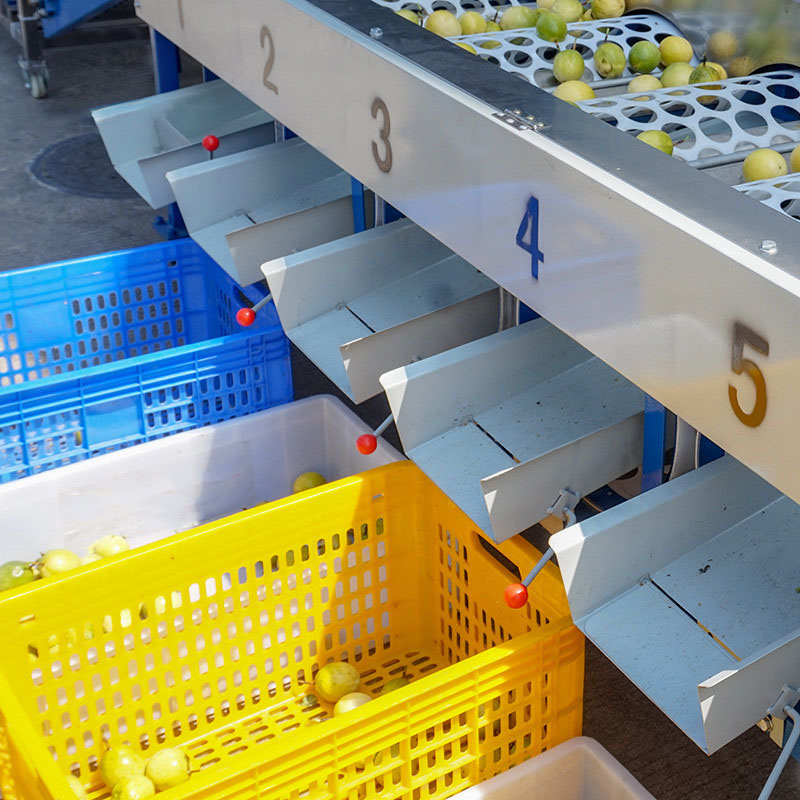

    Fruit Grading (2)
    Fruit Grading
    Air-Dried Fruits
    Air-Dried Fruits
    Air Drying
    Air Drying

    Product features

    Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 9
    High-Efficiency Cleaning
    The circulating water flow system generates high-speed rotation to effectively remove dirt, mud, and impurities from vegetables, fruits, and seafood without causing damage. The water flow strength and cleaning time are fully adjustable, ensuring optimal performance for various food washing needs.
    Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 10
    Hydraulic Unloading System
    Equipped with an automatic hydraulic system, the KT-WB100U lifts, drains, and unloads cleaned materials into the next processing stage. It also allows for secondary cleaning by transferring materials between washers, making it perfect for commercial food processing operations that require multiple cleaning stages.
    Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 11
    Durable Construction
    Built with food-grade 304 stainless steel, the KT-WB100U is designed for durability and easy maintenance. It is resistant to wear and corrosion, even in demanding commercial food production environments.
    Automatic Passion Fruit Washing, Air Drying and Grading Processing Line 12
    Batch Processing for High Output
    The KT-WB100U is designed for batch washing, with a capacity of 20-40kg per batch and a cleaning cycle of just 3-5 minutes. With an hourly capacity ranging from 300-800kg per hour, it is ideal for large-scale, continuous production.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (4)
    Fully Automated Operation
    This automated washer machine includes features such as high-pressure rinsing, automatic flipping, and water-saving drainage. It is easy to operate and perfect for food processing plants requiring high-efficiency, low-maintenance washing solutions.
    KT-WB100U-Commercial-Best-Multifunctional-Fruit-an (3)
    Wide Applications
    Ideal for cleaning various products such as leafy vegetables, root vegetables, fruits, and seafood, the KT-WB100U is widely used in food processing factories, restaurants, hotels, canteens, and fruit processing businesses.

    ✔ Comprehensive Fruit Cleaning

    Equipped with an ozone bubble washing machine that effectively removes dirt, residues, and bacteria from the fruit surface. Optional ultrasonic cleaning enhances hygiene for delicate or premium produce.

    High-Efficiency Air Drying

    The parallel air drying machine uses powerful and evenly distributed airflow to remove surface moisture without damaging the fruit, ensuring better shelf life and packaging performance.

     Accurate Size Grading

    Integrated fruit grader automatically classifies fruits into different sizes based on diameter, enabling consistent product quality for packaging or further processing.

     Food-Grade & Durable Construction

    Made entirely of 304 stainless steel, the machine ensures hygiene, corrosion resistance, and long-term stability for industrial use.

     Labor-Saving Automation

    Fully automatic and continuous operation helps reduce labor costs, improve output efficiency, and simplify post-harvest handling.

    application

    The passion fruit washing, drying, and grading line is widely used for post-harvest handling and processing of small to medium-sized round fruits. This includes: Passion fruit, Tomatoes, Limes, Plums, Guavas and Other round fruits.

    This processing line is especially suitable for fruit farms, food processing factories, agricultural cooperatives, and fruit distribution centers that require automated and hygienic fruit handling solutions. With its efficient cleaning, drying, and grading capabilities, the line significantly reduces manual labor and ensures consistent product quality, helping streamline large-scale fruit processing operations.

    Spray Cleaning-
    Spray Cleaning-
    Spray Cleaning
    Spray Cleaning
    Bubble and Spray Cleaning-
    Bubble and Spray Cleaning
    Bubble and Spray Cleaning
    Bubble and Spray Cleaning

    fAQ

    1
    What types of fruits can this line process?
    It’s ideal for round fruits such as passion fruit, limes, tomatoes, plums, and guavas. The grading system can be customized for different size ranges.
    2
    Is the ozone cleaning system safe?
    Yes, ozone is a widely used food-safe disinfectant that sterilizes without leaving harmful residues.
    3
    What material is used for this machine?
    The entire line is made of high-quality 304 stainless steel for food safety, hygiene, and durability.
    4
    Can the capacity be adjusted?
    Yes, the equipment size, number of grading levels, and line capacity can be tailored to meet your production requirements.
    5
    How much space does the line require?
    The layout can be customized to suit your facility. We offer flexible line configurations based on available space and required output.
    Do you have specific needs? Let us know.

    IKE offers customized food processing machines to match your needs. Tell us what you're looking for—we’ll help you find the right solution.
